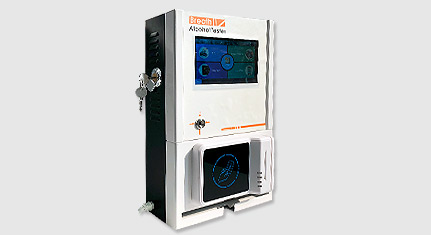

AT319s Standalone Alcohol Tester

Sensor: Electrochemical (fuel cell) alcohol sensor; Module replaceable
Test Range: 0.000～0.400%BAC
Resolution: 0.001%BAC
Payment Method: Coin, credit/debit card, NFC, APPLE PAY
Warm up Time:≤1min
Working Temperature: 0℃～50℃

Get a Quote Leave Message Download

Overview

Description

AT319S is a standalone multi-payment alcohol tester with start of the art design, which adopts advanced changeable fuel cell sensor module that presents professional grade accuracy, superb repeatability and high sensitivity.

Features

Fuel cell sensor-accuracy and reliance

Pre-calibrated sensor module-easy for maintenance

AC110V/220V power supply

Switchable result units(mg/l, g/l, %BAC, ‰BAC)

Suitable for bar, restaurant, hotel, and night clubs, etc.

Payment option: coin, credit/debit card, apple pay, NFC payment

Application

Bar, hotel, restaurant, factory, workshop, office, hotel, mine, etc.

Technical Data

Model: AT319S
Sensor: Electrochemical (fuel cell) alcohol sensor; Module replaceable
Test Range: 0.000～0.400%BAC
Resolution: 0.001%BAC
Payment Method: Coin, credit/debit card, NFC, APPLE PAY
Warm up Time:≤1min
Working Temperature: 0℃～50℃
Humidity:≤95％RH No Dews
Storage Temperature: -20℃～60℃
Display: Touch Screen(1024*600）
Working Voltage: Adapter input：AC100V～AC240V，50/60HZ；
Output：DC12V/1.5A
Unit: Switchable result units(mg/l, g/l, %BAC, ‰BAC)
Deviation: ±8%
Coin demand for Single Test: 0～15
Coin Diameter: 15mm～29mm
Coin Thickness: 1.8mm～3.0mm
Capacity of Coin Box: 200
Capacity of Straw Box: 200（Diameter:7mm）
Sensor Life: 2 years
Dimension: 250mm×100mm×400mm
Weight: 4.8kg
