DZ505 Breath Alcohol Teser

DZ505 Breath Alcohol Teser
Sensor: Semiconductor
Accuracy: ±0.01%BAC at 0.05%BAC
Warm Up: 30s
Battery: 2 Pieces of AA Alkaline Battery
Weight: 50g Without Battery
Unit: ºC, ‰BAC, mg/L, g/L are optional
Share With:

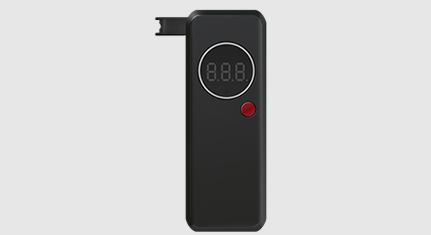

DZ505 is a breath alcohol tester implemented in advanced flat surfaced semiconductor technology, featuring good sensitivity and repeatability, low voltage remind, LED display, simply to operate, compact design and small size which is conveniently to carry, audible and visible alarm indication when test result is beyond the preset threshold.

Technical Data

Sensor type Flat-surfaced sensor
Detection range 0.00 - 0.20ºC, 0.00-2.00‰BAC
0.00 - 1.00mg/L; 0.00 - 2.00g/L
Accuracy ± 0.05mg/l at 0.25mg/l /±0.02ºC at 0.05ºC
Pre-set level 0.05ºC; 0.50‰BAC; 0.25mg/L; 0.50g/L
Warm-up time 30 seconds counting down
Testing time < 8 Sec
Display White digital tube
Power 3.7V/600mAh lithium
Working environment 0℃ - 50℃, ≤95% RH, No dews
Working time >200 blowing times (full charge)
Dimensions 100mm×62.5mm×25mm @63g
Unit ºC, ‰BAC, mg/L, g/L are optional
